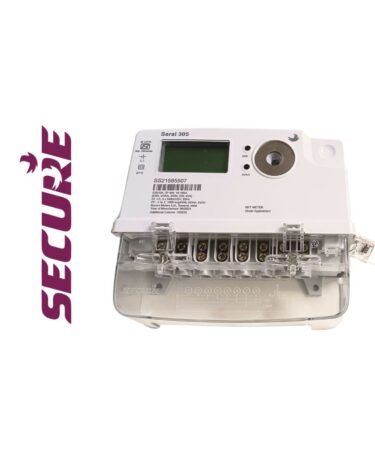

Indobazzar : Secure Prodigy Bi-Directional/Net Energy Meter Uttar Pradesh Approved
Prodigy GSM offers fast data transfer for consumer tariff and DT metering installations through GSM communication network. It can send alerts for anomalies, facilitating prompt action from the utility.
3-phase 4-wire, direct connected, 230/240 V, 10 kV, 2 Ω setup, 0.32 W/0.6 VA per phase
ITEM WARRANTY
5 Years
PRODUCT TYPE
Energy Meter
SHAPE
Rectangle
ITME CONDITION
New
PRODUCT WARRANTY
5 Year
NO. OF DAYS TO DISPATCH
3-4 Days
COUNTRY OF ORIGIN
India
IS SALEABLE
Yes
Features
• Composite metering unit for LTCT segment
• No need for external CTs, meter box and accessories
• Product accuracy class – 1.0
• Wide current range, 40-200A
• Thread-through meter – cable passes through meter
• Tamper detection- voltage, current, magnetic influences
• Peak kVA load profiling Benefits
• Events recording –
1. High/ Low Voltage
2. Under/ Over load
3. No/ Partial/ Full supply
• Communication options –
1. Optical port
2. Inbuilt GSM modem
• Scheduled data transfer in fast mode to central station
• SMS alerts for tamper events
• IP 54 compliant Technical specifications
Connection type Direct connected
Wiring configuration 3 phase 4 wire
Voltage range 240 V/230 V (P-N)
Current range 40 – 200 A
Accuracy Class 1.0
Main frequency 50 Hz ±5%
Burden As per standards
Insulation class 4 kV RMS 50 Hz
Impulse with stand 6 kV
